IOTKAMRecording & evidence capture
1440P30 top resolution, 46 MP photos, snapshot during recording, selectable clip lengths from 1 to 30 minutes, pre- and post-recording buffers of 30–60 seconds, loop recording and motion detection.
Body worn camera

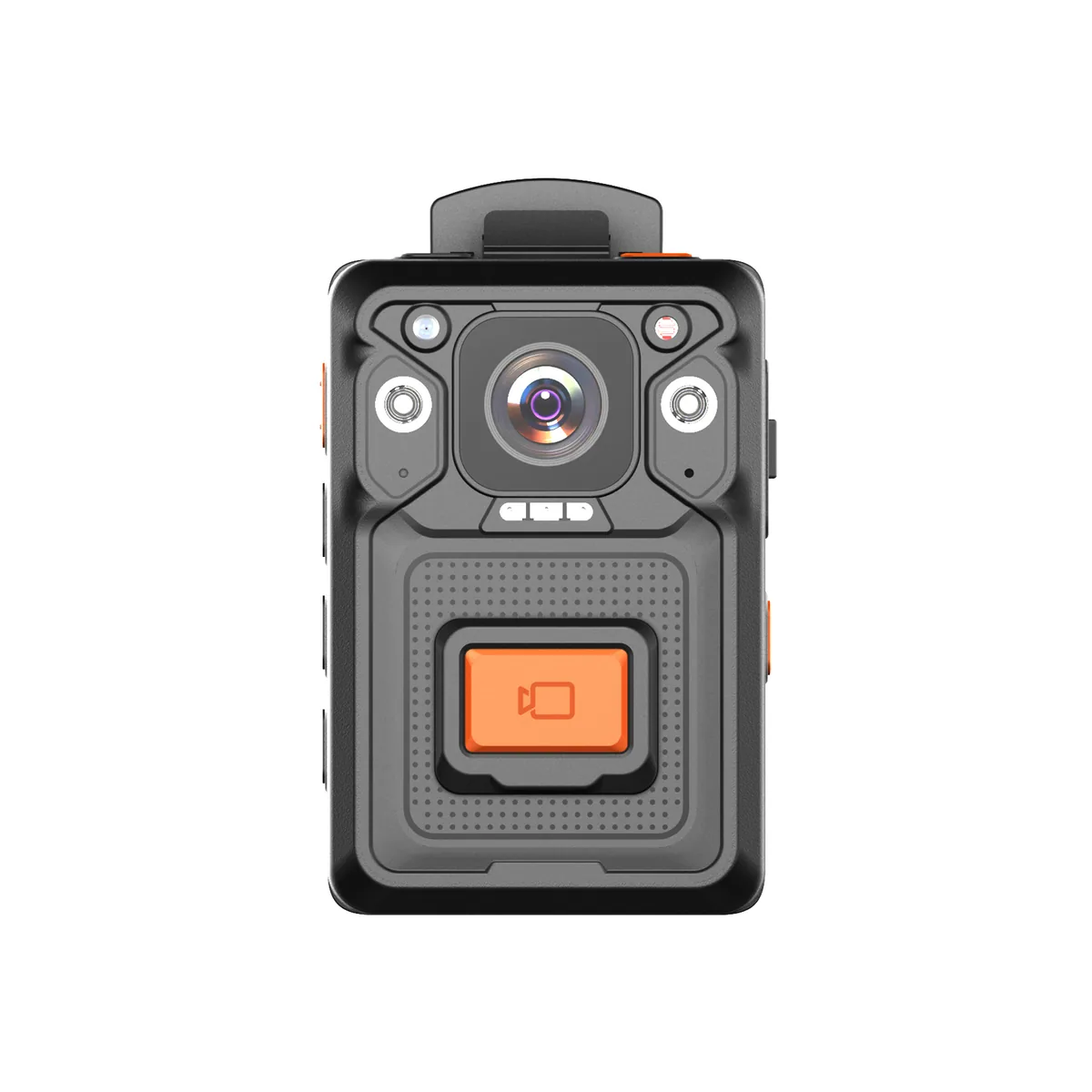

IK-100 Body Worn Camera
1440P local recording with 1080P live streaming on the Ambarella H22 platform. Up to 12 hours of recording per charge, IR night vision to 10 metres, AES256 encryption on the card and on the stream, IP67 against dust and water — manufactured in-house, with optional 4G, GPS and PTT.
Why the IK-100
Built for a full shift, not a demo
- 1440P30 local recording with H.264/H.265, plus a 2.0" colour screen and 140° wide-angle F1.8 lens.
- Up to 12 hours at 1080P on one charge — a full shift without swapping batteries; 4 hours to recharge.
- Live streaming to 1080P30 over Wi-Fi or optional 4G LTE, with audio and text streaming alongside video.
- Sees in the dark: dual IR illuminators reach 10 metres at 0 lux with clear human-shape imaging.
- AES256 everywhere: files encrypted on the card, RTSP streams encrypted in transit, HTTPS and dynamic PIN Wi-Fi access.
- Field-proof: IP67 sealed against dust and water, rated for 1.8 m drops onto hard surfaces.

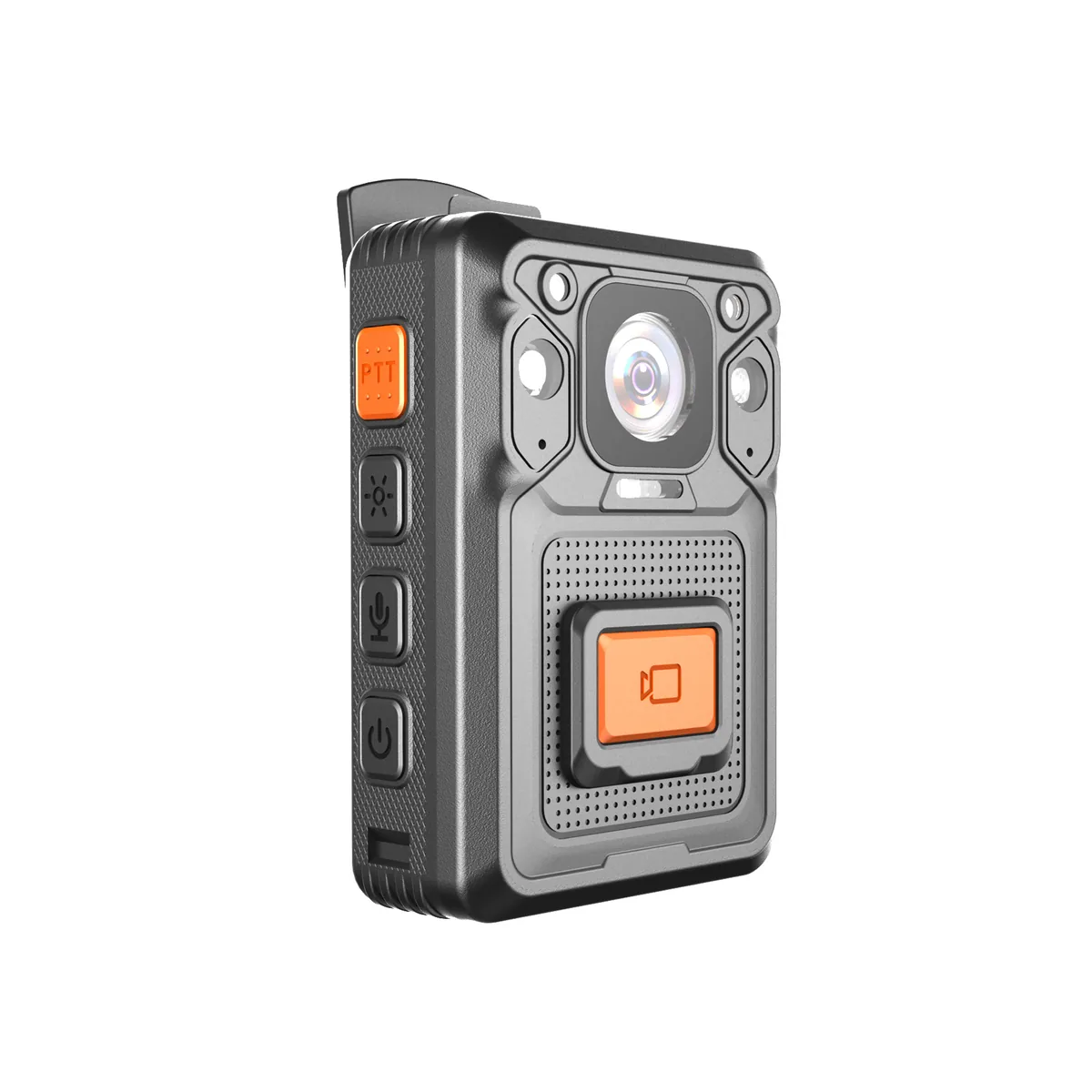

- Operator-first controls: large front record button, top record button, yellow PTT and SOS keys, programmable audio and vibration alerts.
- Integration-ready: RTSP, ONVIF, RTMP, MQTT and FTP (optional), USB/JSON command control, and secondary development support.
Capabilities
What the IK-100 covers
Live operations
Streams video, audio and text at 1080P30 down to 320P30 over Wi-Fi or optional 4G. SOS raises an audible alarm across the camera group and alerts the command centre with the camera's location.
Positioning & stamping
Optional GPS with timezone sync. Overlays user ID, device ID, date, time, geo-tags and logo on the footage, so every clip carries its own chain of custody.
Group communication
Yellow PTT button with optional group talkback — camera to camera, camera to command centre and back. Text messaging between cameras and the command centre is supported.
Close-up
Every angle, in detail
Specifications
IK-100 technical specifications
Standard configuration unless marked optional. Options are configured at order time — tell us what your deployment needs.
| Physical | |
|---|---|
| Dimensions | 84.5 × 56.3 × 27.3 mm |
| Weight | 163 g (0.31 lb) |
| Display | 2.0" TFT colour screen |
| Standard mount | 360° rotatable crocodile clip |
| Optional mounts | MOLLE-compatible mount; CLICKFAST stud |
| Camera | |
| Chipset | Ambarella H22 |
| Lens | 140° wide angle, F1.8 aperture (horizontal FOV 140°) |
| Minimum illumination | 0.1 lux |
| Night vision | 2 IR LEDs, up to 10 m illumination range; clear human-shape imaging at 0 lux |
| Fill light | 90° fill light for low-light conditions, enable/disable via button |
| Laser pointer | Optional — for target positioning, enable/disable via button |
| Image stabilization | Optional — 6-axis electronic image stabilizer (EIS) |
| Video, photo & audio | |
| Video codec | H.264 / H.265, MP4 container |
| Local recording | 1440P30 · 1080P60 · 1080P30 · 1080P25 · 1080P15 · 720P30 · 720P60 · 480P30 |
| Live streaming | 1080P30 · 720P30 · 480P30 · 320P30, with audio and text streaming |
| Streaming bitrate | 300 kbps – 4 Mbps |
| Photo | JPEG, up to 46 MP; snapshot during recording |
| Audio | AAC |
| Clip length | 1 / 2 / 3 / 5 / 10 / 30 min, selectable |
| Video stamp | User ID, device ID, date, time, geo-tags and logo overlay |
| Pre / post recording | 30–60 seconds each, varies by resolution setting |
| Loop recording | Configurable via menu; motion detection supported |
| Connectivity | |
| Wi-Fi | 2.4 GHz & 5 GHz, AP/STA/P2P modes, IEEE 802.11 b/g/n/ac, WPA-2 |
| Bluetooth | Bluetooth 5.0 |
| Cellular | Optional 4G LTE — Cat-4 (150↓ / 50↑ Mbps) or Cat-1 (10↓ / 5↑ Mbps); FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B20/B28/B66, TDD B38/B40/B41 |
| GPS | Optional; timezone via menu or GPS sync |
| Network protocols | RTSP / ONVIF / RTMP / TCP / UDP / MQTT / FTP (optional) |
| USB | USB Type-C, supports external camera connection; USB & JSON command control |
| Docking | Pogo pin connector, dock-and-go operation |
| Battery | |
| 1080P local recording | Up to 12 hours |
| 480P local recording | Up to 14 hours |
| 4G streaming + recording | Approx. 7.5 hours |
| Charging time | 4 hours |
| Durability | |
| Ingress protection | IP67 |
| Drop resistance | 1.8 m (5.9 ft) |
| Security | |
| File encryption | AES256 during writing to memory card |
| Stream encryption | AES256 for RTSP video / audio / text streaming |
| Network security | HTTPS & HTTP server supported |
| Wi-Fi security | Dynamic PIN code authentication |
| Driver compatibility | Ambarella driver-free connection, even with USB encryption enabled |
| Storage & accessories | |
| Storage | Optional — 32 GB / 64 GB / 128 GB / 256 GB / 512 GB |
| External camera | Optional — supported via USB |
| Earphone jack | Optional |
| Special functions | |

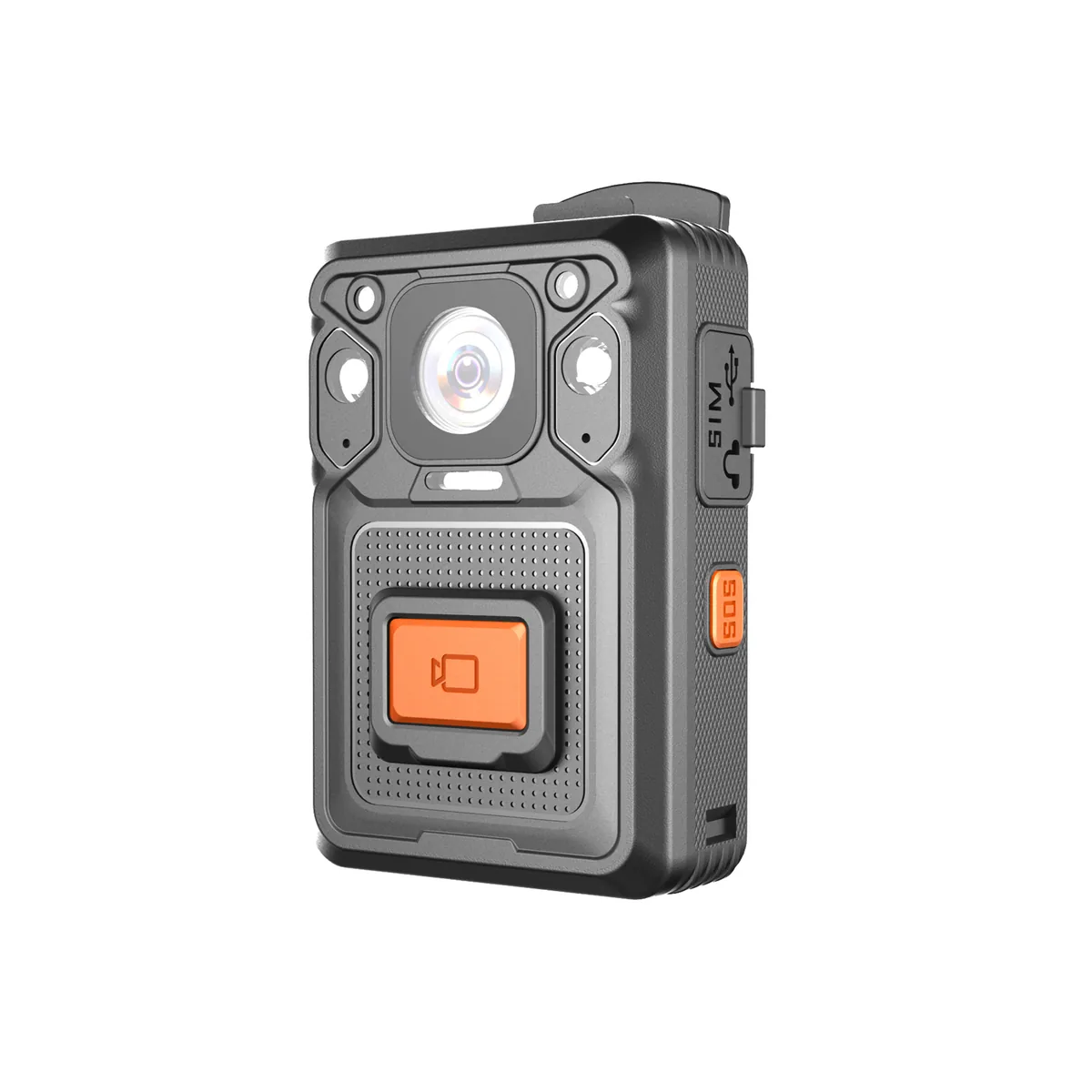

| SOS alarm | SOS button activates an audio alarm on all group cameras and sends alarm + location to the command centre |
| PTT group talkback | Optional — camera-to-camera, camera-to-command-centre, command-centre-to-camera; groups configured via camera or platform |
| Text messaging | Between cameras and the command centre |
| Holster sensor | Optional — automatic recording via holster hall sensor |
| Remote controller | Optional |
| Re-development | Secondary development supported — SDK and API documentation available |
| Packaging | |
| Carton size | 47 × 32 × 24.6 cm |
| Quantity / weight | 20 pcs per carton, 13.5 kg gross |
Working together
The camera is half the system
Evidence management
Paired with DEMS or DEMS PRO, the IK-100 offloads its recordings automatically on docking — encrypted in transit and on the card, filed under case numbers, with a full audit trail.
Live command
With the optional 4G module, the IK-100 streams live video and position into CMSV9 — multi-window live view, map positioning, intercom and alarm linkage from the command centre.
Docking & data transfer
On end of shift, the IK-100 docks into the DS-UES-22 station — six bays charge at 2A each and upload recordings over the network automatically.
Your platform
ONVIF, RTSP, RTMP, MQTT and USB/JSON command control let the IK-100 feed third-party software. See integration and SDK for what we document and support.
FAQ
IK-100 — common questions
How long does the IK-100 record on one charge?
Up to 12 hours of continuous local recording at 1080P, up to 14 hours at 480P, and approximately 7.5 hours when streaming over 4G while recording at the same time. A full charge takes about 4 hours.
Does the IK-100 support 4G live streaming?
Yes, as an option. The camera accepts an optional 4G LTE module — Cat-4 with 150 Mbps downlink or Cat-1 with 10 Mbps downlink — with wide FDD and TDD band coverage. Live video streams at 1080P30, 720P30, 480P30 or 320P30 and can be viewed in our CMSV9 command platform. Without the cellular module, the camera streams over built-in dual-band Wi-Fi.
Can the IK-100 integrate with our own software?
Yes. The camera speaks RTSP, ONVIF, RTMP, MQTT and FTP (optional) over TCP/UDP, supports USB and JSON command control, and secondary development is supported. We provide SDK, API and streaming protocol documentation so your team can evaluate the integration before committing.
How is the recorded footage protected?
Files are AES256-encrypted as they are written to the memory card, and RTSP video, audio and text streams are AES256-encrypted in transit. The camera serves HTTPS, and Wi-Fi access uses dynamic PIN code authentication.
Is the IK-100 available as OEM or white label?
Yes. We manufacture the camera ourselves — hardware design, firmware and assembly are in-house — so we offer white-label housing and branding, firmware adaptation to your workflow, and custom packaging under our OEM and ODM programmes.
